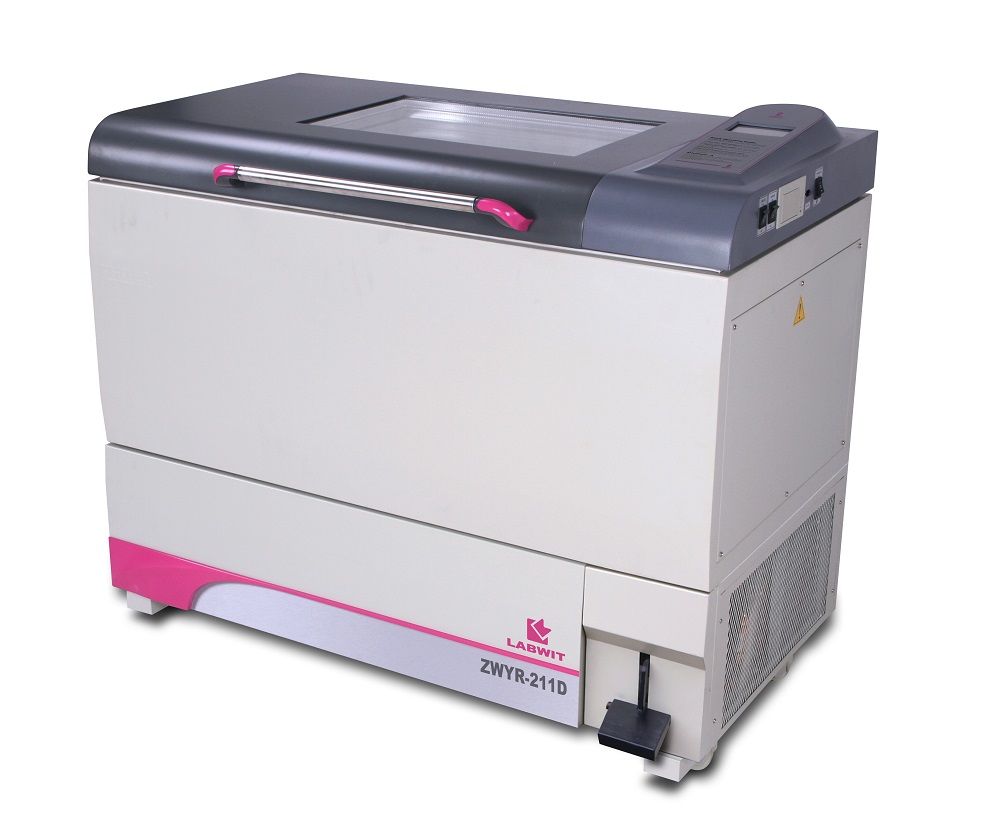

Horizontal floor shaking incubators

Model: ZWYR-211D; Labwit - Australia

Origin: China

Description:
These new premium horizontal floor shaking incubators are developed for the modern biological engineering
departments; large capacity of smaller size flasks, or for large volume flasks up to of 5L. The units are widely
used in applications of germ culture, fermentation, hybridization, biochemical research, enzyme and cellular
tissues

Features:
* 4.3'' LCD 480x272 touch screen panel clearly indicates all parameters in one page display and makes it easy
to change the operating parameters settings, even those multi set points under programmable mode
intuitively.
* P.I.D microprocessor controller provides unmatched versatility by enable users to create personalized
program (with up to 9 segments, with cycling) to automate changes to function parameters.
* Large double fold tempered glass window and fluorescent light provide complete visibility of chamber
interior.
* ZWYR-211D is equipped with foot pedal for lid opening even when carrying full loads in both hands.
* Inner chamber with coved corners of high graded #304 electro polished stainless steel features excellent
durability as well as ease of cleaning
* Robust triple eccentric counterbalanced drive in cast iron housing provides vibration and trouble free
operation with high shaking speed up to 300rpm.
* Quality brushless AC inductive motor supports reliable, quiet and smooth shaking movements up to top
speed.
* Auto-defrosting system, ensuring long-terms non-frosting operation with low temperature setpoints.
* Non-volatile memory saves settings during a power outage and automatically restarts the unit after power
is restored.
* Audible and visual alarms on over temperature and motor overheating, and automatically cut off the
power.
* Soft start and smooth acceleration when lid is closed after short opens.
* For data recording, the units are equipped with a built-in thermo printer as standard, so that operators
could check how the performance parameters vary according to specified process without having to be on
site.
* Timer up to 9999 mins under fixed value control mode.
* Predrilled standard tray included, without clamps.
* UV light reduces the air burden, keeping the chamber contamination free

Control P.I.D Microprocessor
Control Mode Fix Value or Program (up to 9 Segments)
Control Panel 4.3’’ LCD Touch Screen
Lid Opening Mode Hand Hold Foot Pedal Hand Hold
Volume (L) 300
Working Temperature(℃) 5-25
Shaking Speed (rpm) 30-300
Stroke (mm) Ø26
Shaking Mode Orbital Reciprocal
Tray (mm) (WxD) 920x500 940x584 896x530
Temperature Range (℃) 4-60
Temperature Accuracy (℃) 0.1
Temperature Uniformity (℃) ±1ºC@37℃
Timer 1 to 9999 mins
Inner Dimensions (mm) (WxDxH) 1040x655x465
Exterior Dimensions (mm) (WxDxH) 1290x820x1065
Packing Dimensions (mm) (WxDxH) 1360x910x1225
Net/Gross Weight (kg) 263/313
Power (W) 1800

Capacity: 77 x 50ml Flask or 77 x 100ml Flask or 54 x 250ml Flask or 36 x 500ml Flask or 26 x 750ml Flask or 18 x 1000ml Flask or 15 x 2000ml Flask or 8 x 3000ml Flask or 6 x 5000ml Flask
Electricity 220-240V 50/60 Hz
Approval: CE, ISO
Security: Over-temperature Protection, Compressor Overload Protection, Electrical Leakage Protection
Additional Built-in Printer, RS485 Interface Kit (Option)
