Ford cups
Biuged - China

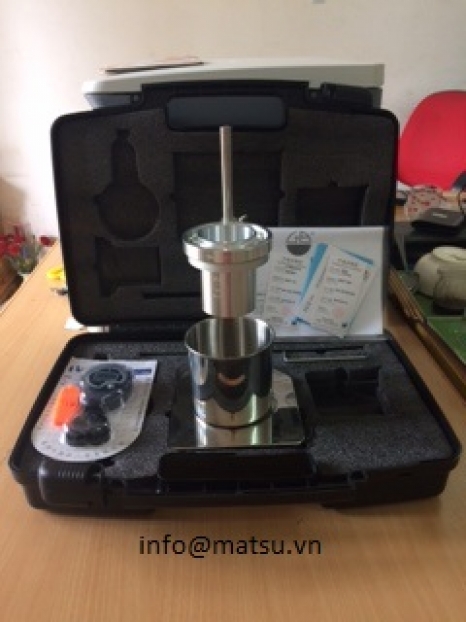

Ford cups produced by our company are in accordance with International Standard ASTM D1200, D333, D365. For easy measurement of the viscosity of paints, inks, lacquers and other liquids. All Biuged Ford cups are machined anodic oxidation aluminum with removable stainless steel orifice and are guaranteed to be within 2% throughout the recommended
range of use

Main Technical Parameters:

• Internal Diameter: 50 ± 0.05mm
• Outer Diameter: 86 ± 0.1mm
• Internal Orifice Length: 10 ± 0.1mm
• Production Tolerance: ± 2%
• Come with calibratin certificate

Details of Ford Cup (4#)

• Internal Vertical Height: 43 ± 0.1mm
• Internal Orifice: Ø 4.12mm
• External Orifice: Ø 6.0 ± 0.5mm
• Centistokes Range: 70 - 370
• Efflux Time: 20 - 105 second
